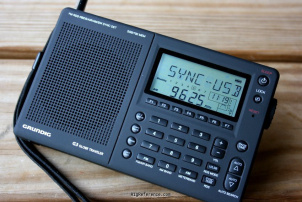

The Grundig G3 Globe Traveler is an innovative portable radio covering long wave, AM, FM (stereo to earphone jack), continuous shortwave plus the VHF aircraft band. It features dual conversion AM/SW circuitry for exceptional sensitivity and image rejection. It offers S.S.B. - Single side-band reception. It has an large 700 channel memory system with memory scan and auto tuning storage. Memories may be labelled up to 8 characters. Unlike other portables in it class, the Globe Traveler offers Synchronous Detection. This special feature addresses the issue of selective fading and adjacent channel interference on shortwave. RDS (radio data system) shows FM call-signs, artist, song title and messages when available. Other enhancements include: Wide/Narrow selectivity, Local/DX switch, direct frequency entry, signal indicator and 24 hour clock with four alarm timers. External antenna jack for shortwave, FM, VHF air band. The right side of the radio has a 3.5 mm Input/Output jack. Requires four AA cells. If four NiMH AAs are inserted, they may be recharged inside the radio.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
700 channels in 1 bank(s)

Receiver

RX-range
150 kHz - 30 MHz
87-108 / 118-137 MHz
Modulations
AM   FM   W-FM Stereo   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Connections

Antenna
F-type + Built-in ferrite bar + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
6 V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
168 × 105 × 28 mm (6.61 × 4.13 × 1.10 in)
Weight
345 gr (12.2 oz)
Form factor
Handheld
Manufactured
Between 2010 and 20xx in China

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5555
MPN
GRUNDIG-G000003

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Mr Gordon Griffiths 6 years ago by m0giq

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Grundig G3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Grundig G3 is around:

  • USD 23.00 ~ USD 27.00
  • GBP 24.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 28.88 Used / Good eBay
2016 GBP 40.00 Used / Mint m0giq
2013 USD 74.95 Used / Good universal-radio
2012 USD 110.00 New / Mint weatherradio
