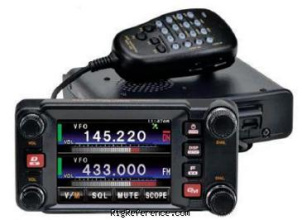

The Yaesu FTM-400D is a mobile transceiver covering 108-470 / 800-999 MHz (cellular blocked) with transmit capability on 2m / 70cm. It features a double conversion superheterodyne receiver system with IF frequencies of 1st: 47.25 / 44.85 MHz and 2nd: 450 kHz. The transceiver has selectable tuning steps of 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz and filters of 12 / 30 kHz. RF output power is selectable at 5 / 20 / 50 W with an audio output of 4 W @ 10% THD. It includes 2 memory banks with 1000 channels, GPS/APRS, packet radio capability, spectrum scope, ARTS, Bluetooth, twin RX and a microSD slot. Dimensions are 72 × 140 × 20 mm (panel). Weight is 1.15 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m. (-20 ~ +60 °C)
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 1000 channels in 2 bank(s)
Receiver
- RX-range
- 108-470 / 800-999 MHz (cellular blocked)
- Modulations
- AM FM N-FM DV
- Sensitivity
- 108-137 MHz: 0.8 µV
137-140 MHz: 0.2 µV
140-150 MHz: 0.16 µV
150-174 MHz: 0.25 µV
174-336 MHz: 0.8 µV
336-420 MHz: 0.25 µV
420-470 MHz: 0.16 µV
470-540 MHz: 0.3 µV
540-899 MHz: 0.8 µV - Selectivity
- 12 kHz @ -6 dB
30 kHz @ -60 dB - Filters
- 12 / 30 kHz
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 47.25 / 44.85 MHz
2nd: 450 kHz - Image rejection
- ?
- Audio output
- 4 W @ 10% THD
Transmitter
- TX-range
- 2m / 70cm
- Modulations
- AM FM N-FM DV
- RF-output
- 5 / 20 / 50 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16 V DC
- Current drain RX
- 0.5 A
- TX
- 10.3 A max
Physical
- Dimensions (w×h×d)
- 140 × 72 × 20 mm (5.51 × 2.83 × 0.79 in) Panel. Chassis: 140 × 40 × 125 mm.
- Weight
- 1.15 kg (2.5 lbs) (panel + chassis + cable)
- Form factor
- Mobile
- Manufactured
- Between 2012 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Color display
GPS / APRS
Packet 1200/9600 bd ready
Spectrum scope
ARTS
Bluetooth
Twin RX
MicroSD slot
500 memories per band - Accessories
- -
- RigReference ID
- 5567
- MPN
- YAESU-FTM-000400D
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-400D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FTM-400D is around:
- EUR 310.00 ~ EUR 239.00
- USD 163.00 ~ USD 198.00
- CAD 533.00
- AUD 586.00
These estimates are based on the following prices:
