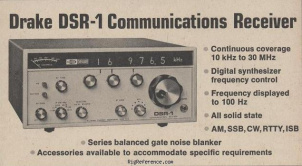

The Drake DSR-1 is a desktop shortwave receiver covering 0.1-30 MHz. It features a double/triple conversion receiver system, Nixie tube display, BFO, and noise blanker. The audio output is 2 W and it operates on Mains (120/240 V AC) power. Dimensions are 140 × 330 × 290 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM USB LSB ISB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double / triple conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (120/240 V AC)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 330 × 140 × 290 mm (12.99 × 5.51 × 11.42 in)
- Weight
- 7.70 kg (17.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1971 and 19xx
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Nixie tube display
BFO
Noise blanker - Accessories
- -
- RigReference ID
- 5579
- MPN
- DRAKE-DSR-000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
