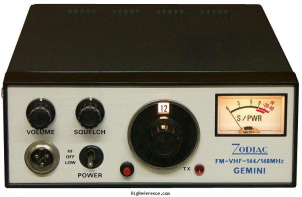

Zodiac Gemini

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Zodiac Gemini rigs and spare parts on eBay

The Zodiac Gemini is a Mobile VHF Transceiver. It covers 144-148 MHz for both receive and transmit. The RF output is selectable between 1 / 15 W. It features 1 memory bank with 12 channels. Power requirements are 13.8 V DC. Current drain is 150 mA in receive and 3.5 A max in transmit. Dimensions are 60 × 250 × 225 mm. It has a built-in 1750 Hz tone burst.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 12 channels in 1 bank(s)

Receiver

RX-range: 144-148 MHz
Modulations: FM
Sensitivity: 0.5 µV @ 12 dB SINAD
Selectivity: ± 12 kHz @ -50 dB
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM
RF-output: 1 / 15 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 150 mA
TX: 3.5 A max

Physical

Dimensions (w×h×d): 250 × 60 × 225 mm (9.84 × 2.36 × 8.86 in)
Weight: 2.00 kg (4.4 lbs)
Form factor: Mobile
Manufactured: Between 1973 and 197x

Other features

Usage: Amateur / Ham radio operators
Features + options: Built-in 1750 Hz tone burst
Accessories: -
RigReference ID: 5588
MPN: ZODIAC-GEMINI
