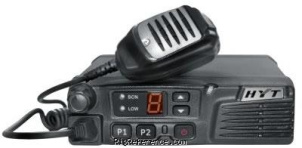

The Hytera TM-600 is a Mobile VHF/UHF Transceiver. Frequency range RX/TX: 136-174 MHz, 400-470 / 450-500 / 350-400 MHz (depending on version). Frequency stability: ± 2.5 p.p.m. Tuning steps: 25 / 20 / 12.5 kHz. RF output: 5 / 25 W. Audio output: 5W (less than 5% distortion) 3W (less than 3% distortion). Memory banks: 1. Memory channels: 8. Power requirements: 13.6V DC ±15%. Dimensions: 43 × 152 × 125 mm. Weight: 1 kg. Current drain RX: 2 A max. Current drain TX: 8 A max.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 25 / 20 / 12.5 kHz
- Memories
- 8 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
400-470 / 450-500 / 350-400 MHz (depending on version) - Modulations
- FM
- Sensitivity
- 0.28 / 0.33 / 0.35 μV
- Selectivity
- 75 / 70 / 65 dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 5W (less than 5% distortion) 3W (less than 3% distortion)
Transmitter
- TX-range
- 136-174 MHz
400-470 / 450-500 / 350-400 MHz (depending on version) - Modulations
- FM
- RF-output
- 5 / 25 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.6V DC ±15%
- Current drain RX
- 2 A max
- TX
- 8 A max
Physical
- Dimensions (w×h×d)
- 152 × 43 × 125 mm (5.98 × 1.69 × 4.92 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 201x and 201x in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5635
- MPN
- HYTERA-TM-000600
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hytera TM-600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Hytera TM-600 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
