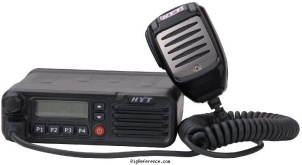

The Hytera TM-628H is a Mobile VHF/UHF Transceiver. It covers 136-174 MHz and 400-470 MHz for both receive and transmit. Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 / 20 / 12.5 kHz. RF output is 50 / 45 W max. Audio output is 5W (less than 5% distortion) or 3W (less than 3% distortion). It features 1 memory bank with 128 channels. Power requirements are 13.6V DC ±15%. Current drain is 2 A max in receive and 12 A max in transmit. Dimensions are 48 × 154 × 161 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 25 / 20 / 12.5 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
400-470 MHz - Modulations
- FM
- Sensitivity
- 0.28 μV
- Selectivity
- 75 / 65 dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 5W (less than 5% distortion) 3W (less than 3% distortion)
Transmitter
- TX-range
- 136-174 MHz
400-470 MHz - Modulations
- FM
- RF-output
- 50 / 45 W max
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.6V DC ±15%
- Current drain RX
- 2 A max
- TX
- 12 A max
Physical
- Dimensions (w×h×d)
- 154 × 48 × 161 mm (6.06 × 1.89 × 6.34 in)
- Weight
- 1.23 kg (2.7 lbs)
- Form factor
- Mobile
- Manufactured
- Between 201x and 201x in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5637
- MPN
- HYTERA-TM-000628H
