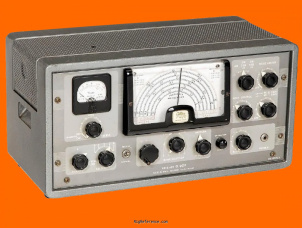

The Geloso G-209 is a desktop shortwave receiver covering 80-10 meters. It features double conversion with 12 valves, 5 xtals filters and an image rejection of ≥ 70 dB. The IF frequencies are 1st: 4.6 MHz and 2nd: 467 kHz. Tuning steps are ± 10 kHz kHz with a frequency stability of ± 0.5 per 100 (± 0.5 kHz per MHz). It has an audio output of 2.5 W, noise limiter and S-meter. The receiver requires mains power and weighs 12.45 kg. Dimensions are 254 × 516 × 260 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ± 0.5 per 100 (± 0.5 kHz per MHz)
- Tuning steps
- ± 10 kHz kHz
- Memories
- ?
Receiver
- RX-range
- 80-10 m
- Modulations
- AM CW
- Sensitivity
- 1 µV
- Selectivity
- ?
- Filters
- 5 xtals
- Receiver system
- Double conversion, 12 valves
- IF-frequencies
- 1st: 4.6 MHz
2nd: 467 kHz - Image rejection
- ≥ 70 dB
- Audio output
- 2.5 W
Connections
- Antenna
- -
- Impedance
- 3.2 - 500Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 90 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 516 × 254 × 260 mm (20.31 × 10.00 × 10.24 in)
- Weight
- 12.45 kg (27.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Italy
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Noise limiter
S-meter - Accessories
- -
- RigReference ID
- 5659
- MPN
- GELOSO-G-000209
