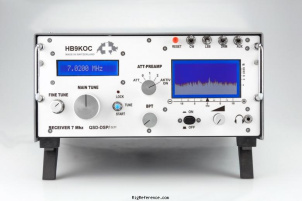

The STAMPFL QSD-DSP RX is a mobile receiver covering 40 m (7 MHz). It features a DSP receiver system, with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. Features include bandpass tuning, PLL Synthesizer (MC145151) Premix, FFT Analyzer (Atmega 8), and a 64 × 128 pixels display. The receiver weighs 3 kg and has dimensions of 120 × 240 × 210 mm.

General characteristics

HAM bands
40m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
40 m (7 MHz)
Modulations
CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
DSP
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
?
Audio output
?

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
240 × 120 × 210 mm (9.45 × 4.72 × 8.27 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Mobile
Manufactured
Between 2005 and 20xx in Switzerland

Other features

Usage
Amateur / Ham radio operators
Features + options
Bandpass tuning
PLL Synthesizer (MC145151) Premix
FFT Analyzer (Atmega 8)
64 × 128 pixels display
Accessories
-
RigReference ID
5681
MPN
STAMPFL-QSD-DSP-RX

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!
