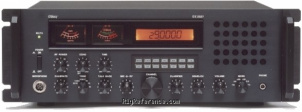

The Galaxy DX-2527 is a base station transceiver. It covers 26-32 MHz for both transmit and receive frequencies with ± 0.003% frequency stability. The radio has an image rejection of -50 dB. RF output power is SSB: 25 W, AM: 10 W with 2.5 W audio output. It features 1 memory bank with 240 memory channels and operates on mains power. The DX-2527 has an LCD display.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ± 0.003%
- Tuning steps
- ?
- Memories
- 240 channels in 1 bank(s)
Receiver
- RX-range
- 26-32 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- AM: 0.5 µV (10 dB S/N)
FM: 0.5 µV (20 dB S/N)
USB/LSB: 0.3 µV (10 dB S/N) - Selectivity
- 0.1 / 1 / 10 / 100 / 1000 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- -50 dB
- Audio output
- 2.5 W
Transmitter
- TX-range
- 26-32 MHz
- Modulations
- AM FM CW SSB
- RF-output
- SSB: 25 W, AM: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- LCD display
- Accessories
- -
- RigReference ID
- 5735
- MPN
- GALAXY-DX-002527
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Galaxy DX-2527. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Galaxy DX-2527 is around:
- USD 293.00 ~ USD 270.00
These estimates are based on the following prices:
