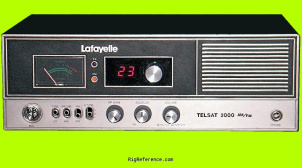

The Lafayette Telsat 2000 AM/FM is a base station transceiver. It covers 26.965-27.255 MHz for both transmit and receive with channelized tuning steps. The RF output is 3.5 W. Audio output is via an internal speaker. It features 24 memory channels in one bank, plus 23 channels (1-23) and one additional 11A channel. Power requirements are mains or 13.8 V DC. Dimensions are 110 × 310 × 225 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 24 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.255 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 26.965-27.255 MHz
- Modulations
- AM FM
- RF-output
- 3.5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains / 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 310 × 110 × 225 mm (12.20 × 4.33 × 8.86 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- 23 channels (1-23) + one additional 11A channel
- Accessories
- -
- RigReference ID
- 5765
- MPN
- LAFAYETTE-TELSAT-002000-AMFM
