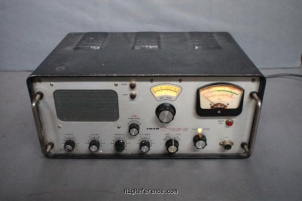

Tram Titan II

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

Channelized

Memories

23 channels in 1 bank(s)

Receiver

RX-range

26.965-27.225 MHz

Modulations

AM   USB   LSB   DSB

Sensitivity

AM: 3 µV
DSB: 3 µV

Selectivity

6 kHz @ -6 dB

Filters

Collins mechanical filter in front end

Receiver system

Capacitor tuning

IF-frequencies

1st: 4245/4535 kHz
2nd: 455 kHz

Image rejection

≥ 65 dB

Audio output

1 W (1.8% THD) ~ 4 W (5.4 THD)

Transmitter

TX-range

26.965-27.225 MHz

Modulations

AM   DSB

RF-output

AM: 2-3 W / DSB: 8-10 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (115 V AC ±10%, 50-60 Hz)

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 1967 and 1969

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

5836

MPN

TRAM-TITAN-II

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tram Titan II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Tram Titan II in Good condition is around:

• USD 300
