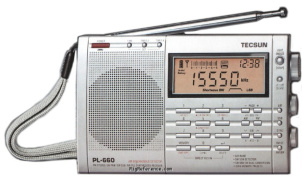

The Tecsun PL-660 is a handheld receiver covering 100-519 / 522-1620 kHz, 1.7-30 MHz, and 87-108 MHz. Tuning steps are selectable at 9/10/100 kHz. It features a double conversion superheterodyne receiver system with an audio output of 1 W. The PL-660 has 1 memory bank with 600 channels and requires 6V DC (4 × R6 batteries) for power. Dimensions are 117 × 188 × 30 mm. Current drain in receive mode is 300 mA.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 9 / 10 / 100 kHz
- Memories
- 600 channels in 1 bank(s)
Receiver
- RX-range
- 100-519 / 522-1620 kHz / 1.7-30 / 87-108 MHz
- Modulations
- AM AM-sync FM W-FM Stereo SSB
- Sensitivity
- 3 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6V DC (4 × R6 batteries)
- Current drain RX
- 300 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 188 × 117 × 30 mm (7.40 × 4.61 × 1.18 in)
- Weight
- 450 gr (15.9 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5970
- MPN
- TECSUN-PL-000660
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL-660. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Tecsun PL-660 in Good condition is around:
- AUD 178
- USD 73 ~ USD 98
These estimates are based on the following prices:
