Regency HR-2A

2 meter transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

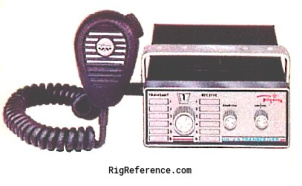

Regency HR-2A - Submitted by Pancho Cheja

Find Regency HR-2A rigs and spare parts on eBay

The Regency HR-2A is a 2 meter transceiver. It covers 144-148 MHz for both receive and transmit. The receiver system is double conversion superheterodyne with IF frequencies of 10.7 MHz / 455 kHz. RF output is 15 W. It features 2 memory banks with 12 channels total. Power requirements are 13.6 V DC. Current drain is 180-800 mA during receive and 2.9 A during transmit. Dimensions are 140 × 64 × 190 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 12 channels in 2 bank(s)

Receiver

RX-range: 144-148 MHz
Modulations: FM
Sensitivity: 0.35 µV
Selectivity: 16 kHz @ -6 dB
32 kHz @ -50 dB
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 10.7 MHz / 455 kHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM
RF-output: 15 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.6 V DC
Current drain RX: 180-800 mA
TX: 2.9 A

Physical

Dimensions (w×h×d): 64 × 140 × 190 mm (2.52 × 5.51 × 7.48 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 197x and 197x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5973
MPN: REGENCY-HR-000002A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Regency HR-2A Instruction Manual PDF - 2.07 MB, submitted by Pancho Cheja
