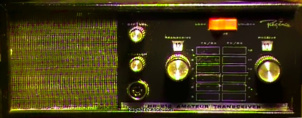

The Regency HR-212 is a 2 meter transceiver. Frequency range for both RX and TX is 144-148 MHz. It has an RF output of 20 W and an audio output of 3 W @ 10% THD, 5 W max. It features double conversion superheterodyne receiver system with IF frequencies of 10.7 MHz / 455 kHz and image rejection of 45 dB. The HR-212 has 1 memory bank with 12 channels and requires 11-14.5 V DC power. Current drain is 180-800 mA while receiving and 5 A max while transmitting.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- Crystal controlled
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.4 µV for 20 dB quieting
- Selectivity
- 7 kHz @ -6 dB, 16 kHz @ -50 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz / 455 kHz
- Image rejection
- 45 dB
- Audio output
- 3 W @ 10% THD, 5 W max.
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 20 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-14.5 V DC
- Current drain RX
- 180-800 mA
- TX
- 5 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5977
- MPN
- REGENCY-HR-000212
Manuals, diagrams and brochures
- Regency HR-212 Service Manual PDF - 3.50 MB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency HR-212. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Regency HR-212 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
