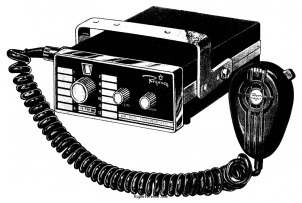

The HR-440 is a 440 MHz (70 cm) model from the 1970s. It has 12 crystal controlled channels and outputs 10 W on FM. Price in 1976 was USD 349.-

General characteristics

HAM bands
70cm
Frequency stability
?
Tuning steps
Channelized
Memories
12 channels in 1 bank(s)

Receiver

RX-range
420-450 MHz (444-450 MHz guaranteed)
Modulations
FM
Sensitivity
0.5 µV (20 dB quieting)
Selectivity
7 MHz @ -6 dB / 20 MHz @ -50 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
10.7 MHz / 455 kHz
Image rejection
60 dB
Audio output
3 W @ 10% (5 W max)

Transmitter

TX-range
420-450 MHz (444-450 MHz guaranteed)
Modulations
FM
RF-output
10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.5-14.5 V DC
Current drain RX
180-800 mA
TX
4.0 A max

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 197x and 197x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5979
MPN
REGENCY-HR-000440

Manuals, diagrams and brochures

Regency HR-440 Owner's Manual PDF - 2.43 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency HR-440. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Regency HR-440 is around:

  • USD 4.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1976 USD 349.00 New / Mint RigReference
