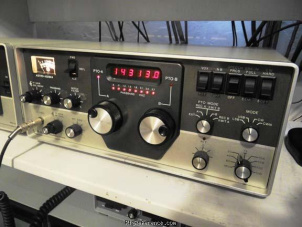

The Swan (Cubic) Astro-102BXA is a HF transceiver covering 160-10 m for both receive and transmit. RF output is 100 W on all bands. It requires 12-14V DC power supply with a current drain of 1.8 A in receive mode and a maximum of 19 A in transmit mode. Dimensions are 162 × 362 × 337 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 160-10 m
- Modulations
- CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m
- Modulations
- CW USB LSB
- RF-output
- 100 W on all bands
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-14V DC
- Current drain RX
- 1.8 A
- TX
- Max 19 A
Physical
- Dimensions (w×h×d)
- 362 × 162 × 337 mm (14.25 × 6.38 × 13.27 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 197x and 198x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5989
- MPN
- SWAN-(CUBIC)-ASTRO-000102BXA
Manuals, diagrams and brochures
-
No documents available for this particular model.
