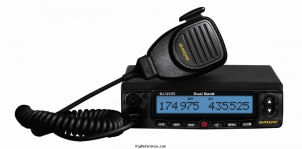

Baojie BJ-UV55

Dual band VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Baojie BJ-UV55 rigs and spare parts on eBay

The Baojie BJ-UV55 is a Dual band VHF/UHF Transceiver. It covers 136-174 / 400-470 MHz for both receive and transmit. The RF output is VHF: 45 W, UHF: 35 W. It features DTMF, CTCSS / DCS, and Twin RX. The radio has 1 memory bank with 128 channels. It requires 13.8V DC ±15%. Dimensions are 43 × 160 × 137 mm and weighs 1.2 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 136-174 / 400-470 MHz
Modulations: FM N-FM
Sensitivity: W-FM: 0.18 µV
FM: 0.22 µV
(12 dB SINAD)
Selectivity: 8 kHz (-6 dB), 30 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 / 400-470 MHz
Modulations: FM N-FM
RF-output: VHF: 45 W, UHF: 35 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC ±15%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 160 × 43 × 137 mm (6.30 × 1.69 × 5.39 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 201x and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF
CTCSS / DCS
Twin RX
Accessories: -
RigReference ID: 6005
MPN: BAOJIE-BJ-UV000055
