Leixen VV-808V

Single-band VHF mobile transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Leixen VV-808V rigs and spare parts on eBay

Find the Leixen VV-808V on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

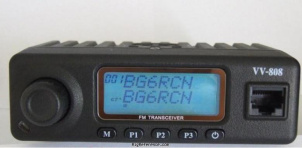

Mobile (vehicle mount) VHF transceiver, suitable for the 2 meter range. Also available as 70cm version as the Leixen VV-808U.

General characteristics

HAM bands: ?
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 / 10 / 12.5 / 25 kHz
Memories: 199 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
Modulations: FM W-FM
Sensitivity: ?
Selectivity: 25 / 12.5 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 400 mW into 8 ohms

Transmitter

TX-range: 136-174 MHz
Modulations: FM W-FM
RF-output: 15 W

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: ?
TX: 1.8 A

Physical

Dimensions (w×h×d): 120 × 40 × 90 mm (4.72 × 1.57 × 3.54 in)
Weight: 275 gr (9.7 oz)
Form factor: Mobile
Manufactured: Between 201x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags display
Big/small fonts
VOX
DTMF
Accessories: -
RigReference ID: 6008
MPN: LEIXEN-VV-000808V

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Leixen VV-808 User manual.pdf PDF - Unknown size, submitted by RigReference
