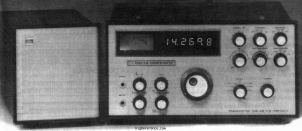

Delta DBR-550 II

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

100 Hz after 30 minutes warm up

Tuning steps

Continuous

Memories

None

Receiver

RX-range

80-10 m

Modulations

AM   CW   SSB   USB

Sensitivity

?

Selectivity

2.4 kHz @ -6 dB / 4.2 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

50 dB

Audio output

2 W @ 5% THD into 8 ohms

Transmitter

TX-range

80-10 m

Modulations

AM   CW   SSB   USB

RF-output

500 W PEP

Connections

Antenna

SO-239

Impedance

50-75Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

450 W

Physical

Dimensions (w×h×d)

398 × 360 × 180 mm (15.67 × 14.17 × 7.09 in)

Weight

12.50 kg (27.6 lbs)

Form factor

Base Station

Manufactured

Between 1982 and 19xx in Brazil

Other features

Usage

Amateur / Ham radio operators

Features + options

Digital display

Accessories

-

RigReference ID

6010

MPN

DELTA-DBR-000550-II
