Expert Electronics SunSDR-MB1
Desktop SDR transceiver | 100 W | HF / 2 / 6m
Add a review Add to my shack

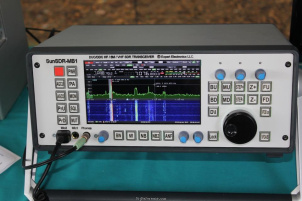

The Expert Electronics SunSDR-MB1 is the first stand-alone rig made by Expert Electronics LLC; it does not require an expernal PC to operate. The rig is built around a Micro-TX Intel Core i5 PC running Windows 7 or Ubuntu Linux. The front is dominated by a 7" LCD screen, a HDMI connector allows external displays to be connected. The complete front panel (all buttons) is programmable by the user.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 10m
- Frequency stability
- ?
- Tuning steps
- Software defined
- Memories
- 10000 channels in 10000 bank(s)
Receiver
- RX-range
- 0.09-65 / 95-148 MHz
- Modulations
- All mode Multiple (Software defined)
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR
- IF-frequencies
- Software defined
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 0-160 MHz
- Modulations
- All mode
- RF-output
- HF: 100 W, VHF: 30 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15V DC or mains
- Current drain RX
- 1 A
- TX
- 5 A max
Physical
- Dimensions (w×h×d)
- 320 × 140 × 250 mm (12.60 × 5.51 × 9.84 in)
- Weight
- 10.00 kg (22.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2013 and 201x in Russia
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 7" LCD, 1280x800 pixels
HDMI connector for external display
2 USB connectors
RS-232 (serial) / RJ-45 (ethernet)
WiFi optional
GPS optional
ATU optional - Accessories
- -
- RigReference ID
- 6015
- MPN
- EXPERT-ELECTRONICS-SUNSDR-MB000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Expert Electronics SunSDR-MB1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Expert Electronics SunSDR-MB1 is around:
- USD 219 ~ USD 406
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
