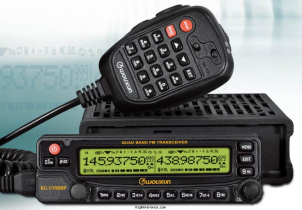

Wouxun KG-UV950P(L)

Quad-band 4/6/2m/70cm Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Wouxun KG-UV950P(L) is a quad-band transceiver covering FM: 26-30 / 50-54 / 65-108 / 108-181 / 320-350 / 400-480 / 700-988 MHz and AM: 108-136 MHz. It features a frequency stability of ± 2.5 p.p.m. and various tuning steps. The receiver system is a double conversion superheterodyne with an image rejection of ≥ 70 dB. RF output is 5-50 W, and audio output is 3 W. It includes 1 memory bank with 999 channels. Dimensions are 44 × 140 × 207 mm. The transceiver weighs 1.44 kg and has a current drain of 500 mA in receive mode and 9 A max in transmit mode.

General characteristics

HAM bands: 6m 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
Memories: 999 channels in 1 bank(s)

Receiver

RX-range: FM: 26-30 / 50-54 / 65-108 / 108-181 / 320-350 / 400-480 / 700-988 MHz
AM: 108-136 MHz
Modulations: AM FM N-FM
Sensitivity: 0.25 µV (13 dB SINAD)
700-998 MHz: -97 dBm (13 dB SINAD)
Selectivity: 12.5 kHz < -60 dB
25 kHz < -70 dB
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ≥ 70 dB
Audio output: 3 W

Transmitter

TX-range: 26-30 / 50-54 / 136-175 / 400-480 MHz
Modulations: FM N-FM
RF-output: 5-50 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±15%
Current drain RX: 500 mA
TX: 9 A max

Physical

Dimensions (w×h×d): 140 × 44 × 207 mm (5.51 × 1.73 × 8.15 in)
Weight: 1.44 kg (3.2 lbs)
Form factor: Mobile
Manufactured: Between 2013 and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF-mic
Dual display
Detachable front panel
Called ID
Twin RX
Cross-band repeater
Accessories: -
RigReference ID: 6020
MPN: WOUXUN-KG-UV000950P(L)
