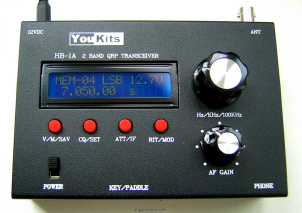

The Youkits HB-1A is a 3 band QRP CW transceiver. It covers 5-16 MHz for receive and 7.0-7.3 / 10.1-10.15 / 14.0-14.35 MHz for transmit on 20 / 30 / 40 m bands. The HB-1A features a DDS circuit with 50MHz reference frequency and a 1602 LCD. It has an RF output of 4 W max @ 13.8 V and an audio output of 0.1W into an 8 ohm load. The transceiver can be powered by 8 × AA batteries or 9-14 V DC. Dimensions are 95 × 140 × 35 mm. The current drain is 55 mA in receive and 550-950 mA in transmit.
General characteristics
- HAM bands
- 40m 30m (WARC) 20m 6m
- Frequency stability
- ?
- Tuning steps
- 10 / 100 Hz, 1 / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 5-16 MHz
- Modulations
- CW USB
- Sensitivity
- ?
- Selectivity
- 4 crystal filter, SSB bandwidth of about 2.2-1.6KHz four selectable bandwidth, CW bandwidth of about 900-400Hz four selectable bandwidth
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 400 Hz - 3 kHz
- Image rejection
- ?
- Audio output
- 8 ohm load about 0.1W
Transmitter
- TX-range
- 7.0-7.3 / 10.1-10.15 / 14.0-14.35 MHz
20 / 30 / 40 m - Modulations
- CW
- RF-output
- 4 W max @ 13.8 V
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 8 × AA batteries or 9-14 V DC
- Current drain RX
- 55 mA
- TX
- 550-950 mA
Physical
- Dimensions (w×h×d)
- 140 × 95 × 35 mm (5.51 × 3.74 × 1.38 in)
- Weight
- 500 gr (1.1 lbs)
- Form factor
- Handheld
- Manufactured
- Between 201x and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DDS circuit with 50MHz reference frequency
1602 LCD - Accessories
- -
- RigReference ID
- 6029
- MPN
- YOUKITS-HB-000001A
