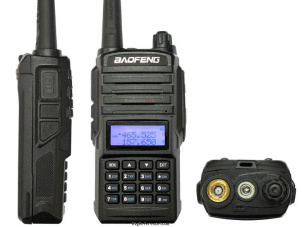

The Baofeng UV-66 is a handheld FM transceiver. It covers 65-108 / 136-174 / 400-520 MHz for reception and 136-174 / 400-520 MHz for transmission. Tuning steps are selectable from 2.5, 5, 6.25, 10, 12.5, 20 or 25 kHz. The UV-66 has a maximum RF output of 1 or 5 W and an audio output of 1W. It features 1 memory bank with 128 channels. The radio weighs 232 gr (incl. antenna + battery) and has dimensions of 110 × 58 × 32 mm. Additional features include LED Flashlight, CTCSS / DCS, DTMF, 1750 Hz, Voice prompt, ANI code and PC programmability.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 kHz
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 65-108 / 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- Sensitivity
- 0.2 μ v (at 12 dB SINAD)
- Selectivity
- ?
- Filters
- 2.5 / 5 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1W
Transmitter
- TX-range
- 136-174 / 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 1 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC Li-ion, 1800 mAh
- Current drain RX
- 380 mA max
- TX
- ?
Physical
- Dimensions (w×h×d)
- 58 × 110 × 32 mm (2.28 × 4.33 × 1.26 in)
- Weight
- 232 gr (8.2 oz) incl. antenna + battery
- Form factor
- Handheld
- Manufactured
- Between 2013 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- LED Flashlight
CTCSS / DCS
DTMF
1750 Hz
Voice prompt
ANI code
PC programmable - Accessories
- -
- RigReference ID
- 6030
- MPN
- BAOFENG-UV-000066
