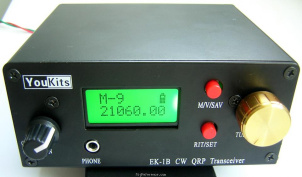

The Youkits EK-1B is a 3 Band transceiver. The frequency range for reception is 13.9-22 MHz and the transmit frequencies are 14.0-14.3 / 18.068-18.168 / 21.0-21.45 MHz. The RF output is 4-5 W @ 13.8 V. The EK-1B features a built-in keyer, 1 memory bank with 10 channels and requires 9-16 V DC power. Dimensions are 51 × 120 × 103 mm.
General characteristics
- HAM bands
- 20m 17m (WARC) 15m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 13.9-22 MHz
- Modulations
- CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- IF-DDS: 60 MHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 14.0-14.3 / 18.068-18.168 / 21.0-21.45 MHz
- Modulations
- CW
- RF-output
- 4-5 W @ 13.8 V
Connections
- Antenna
- BNC
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 9-16 V DC
- Current drain RX
- 120-130 mA
- TX
- 800 mA
Physical
- Dimensions (w×h×d)
- 120 × 51 × 103 mm (4.72 × 2.01 × 4.06 in)
- Weight
- 420 gr (14.8 oz)
- Form factor
- Mobile
- Manufactured
- Between 2013 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in keyer
- Accessories
- -
- RigReference ID
- 6031
- MPN
- YOUKITS-EK-000001B
Manuals, diagrams and brochures
- Youkids EK1B Schematic PDF - 26.4 kB, submitted by RigReference
- Youkids EK1B User Manual PDF - 766.9 kB, submitted by RigReference
- Youkids EB1B Assembly Manual PDF - 2.51 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits EK-1B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Youkits EK-1B is around:
- EUR 90.00
These estimates are based on the following prices:
