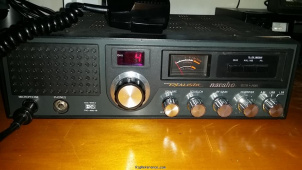

RadioShack / Realistic TRC-490

General characteristics

HAM bands

11m (CB)

Frequency stability

± 135 Hz

Tuning steps

Channelized

Memories

40 channels in 1 bank(s)

Receiver

RX-range

26.965-27.405 MHz

Modulations

AM   SSB

Sensitivity

AM: 0.5 µV
SSB: 0.25 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

85 dB

Audio output

8 Ohm, 2.5 Watt

Transmitter

TX-range

26.965-27.405 MHz

Modulations

AM   SSB

RF-output

AM: 4 W, SSB: 12 W

Connections

Antenna

SO-239

Impedance

52Ω

Other

-

Electrical

Power requirements

Mains / 12-16 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

340 × 100 × 290 mm (13.39 × 3.94 × 11.42 in)

Weight

6.50 kg (14.3 lbs)

Form factor

Base Station

Manufactured

Between 197x and 19xx

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

6069

MPN

RADIOSHACK-/-REALISTIC-TRC-000490
