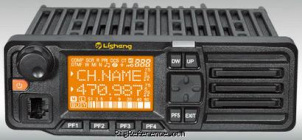

Lisheng UT858

VHF/UHF long-range mobile radio

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Lisheng UT858 rigs and spare parts on eBay

The Lisheng UT858 is a VHF/UHF transceiver. It covers 136-174 / 350-390 / 400-470MHz / 450-520 MHz for both receive and transmit. Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 / 12.5 / 10 / 6.25 / 5 kHz. RF output is selectable at 10/25/50 W. Audio output is 500mW. The UT858 features 1 memory bank with 199 channels and a detachable front panel. It requires 13.8 V DC ±15% (11.7-15.8V) power. Dimensions are 56 × 185 × 170 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 25 / 12.5 / 10 / 6.25 / 5 kHz
Memories: 199 channels in 1 bank(s)

Receiver

RX-range: 136-174 / 350-390 / 400-470MHz / 450-520 MHz
Modulations: FM
Sensitivity: ≤0.20 µV / ≤0.25 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 500mW

Transmitter

TX-range: 136-174 / 350-390 / 400-470MHz / 450-520 MHz
Modulations: FM
RF-output: 10/25/50 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±15% (11.7-15.8V)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 185 × 56 × 170 mm (7.28 × 2.20 × 6.69 in)
Weight: 1.16 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 2014 and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Detachable front panel
Accessories: -
RigReference ID: 6070
MPN: LISHENG-UT000858
