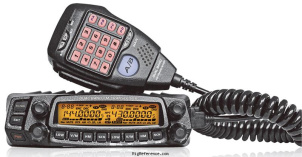

The Anytone AT-5888UV is a mobile dual-band VHF/UHF transceiver. It covers 118-134 / 134-174 / 200-260 / 350-400 / 400-520 MHz in receive and 134-174 / 400-490MHz in transmit. The frequency stability is ± 2.5 p.p.m. It has an image rejection of ≥ 60 dB. RF output power is selectable at 55 / 35 / 10 / 5 W. Audio output is 2 W @ 10% THD. It features 1 memory bank with 758 channels and requires 13.8 V DC (±15%). Dimensions are 40 × 139 × 212 mm. The transceiver weighs 1.14 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
- Memories
- 758 channels in 1 bank(s)
Receiver
- RX-range
- 118-134 / 134-174 / 200-260 / 350-400 / 400-520 MHz
- Modulations
- AM FM
- Sensitivity
- W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD) - Selectivity
- 12.5 / 25 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 60 dB
- Audio output
- 2 W @ 10% THD
Transmitter
- TX-range
- 134-174 / 400-490MHz
- Modulations
- FM
- RF-output
- 55 / 35 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC (±15%)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 139 × 40 × 212 mm (5.47 × 1.57 × 8.35 in)
- Weight
- 1.14 kg (2.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2013 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6075
- MPN
- ANYTONE-AT-005888UV
Manuals, diagrams and brochures
- Anytone AT-5888VU English Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-5888UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Anytone AT-5888UV is around:
- USD 87.00 ~ USD 69.00
These estimates are based on the following prices:
