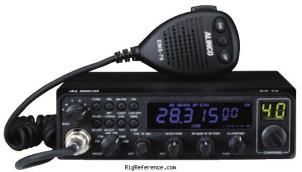

Alinco DX-10

General characteristics

HAM bands

?

Frequency stability

± 1 p.p.m.

Tuning steps

10 / 100 Hz / 1 / 10 kHz

Memories

360 channels in 6 bank(s)

Receiver

RX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   USB   LSB   GMSK

Sensitivity

AM: +6 dBu (2 µV)
FM: -6 dBu (0.5 µV)
SSB: 0 dBu (1 µV)
CW: -12 dBu (0.25 µV)

Selectivity

AM/FM: 6 kHz @ -6 dB, 18 kHz @ -60 dB
SSB/CW/AM-N: 2.4 kHz @ -6 dB, 4.5 kHz @ -60 dB

Filters

?

Receiver system

Single / Double conversion

IF-frequencies

1st: 10.695 MHz
2nd: 455 kHz (AM/FM only)

Image rejection

≥ 65 dB

Audio output

3 W

Transmitter

TX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   USB   LSB   GMSK

RF-output

FM/AM/CW: 1-12 W, SSB: 0-25 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

750 mA max

TX

6 A max

Physical

Dimensions (w×h×d)

170 × 52 × 512 mm (6.69 × 2.05 × 20.16 in)

Weight

1.40 kg (3.1 lbs)

Form factor

Mobile

Manufactured

Between 2014 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6088

MPN

ALINCO-DX-000010

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DX-10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DX-10 is around:

• GBP 66.00
