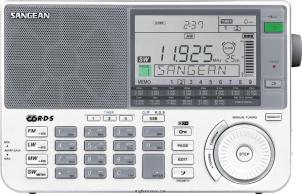

The Sangean ATS-909X is a handheld HF/VHF receiver. It covers 153-29999 kHz and 87.5-108 MHz with tuning steps of 0.04-100 kHz. The receiver system is dual conversion. Audio output is 1.5 W. It features 1 memory bank with 406 channels, a 9/10 kHz switch, alpha tagging, auto tuning system, RF gain control, FM RDS/RDBS and a 3.2 x 1.7" LCD screen. Dimensions are 133 × 200 × 38 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.04-100 kHz
- Memories
- 406 channels in 1 bank(s)
Receiver
- RX-range
- 153-29999 kHz / 87.5-108 MHz
- Modulations
- AM N-AM W-FM W-FM Stereo CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Dual conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1.5 W
Connections
- Antenna
- Built-in telescopic
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- 4 x LR6/AA or 9 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 200 × 133 × 38 mm (7.87 × 5.24 × 1.50 in)
- Weight
- 730 gr (1.6 lbs)
- Form factor
- Handheld
- Manufactured
- Between 2010 and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9 / 10 kHz switch
Alpha tagging
Auto Tuning System
RF Gain Control
FM RDS/RDBS
3.2 x 1.7" LCD screen
Aux Audio Input - Accessories
- -
- RigReference ID
- 6099
- MPN
- SANGEAN-ATS-000909X
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sangean ATS-909X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Sangean ATS-909X is around:
- USD 32.00
These estimates are based on the following prices:
