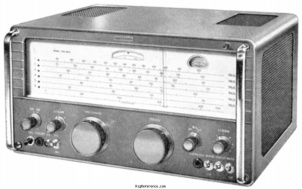

Eddystone 770U / MkII

General characteristics

HAM bands

?

Frequency stability

≤ 1 kHz per °C temperature change after 15 minutes warm-up

Tuning steps

?

Memories

?

Receiver

RX-range

150-180 / 180-220 / 220-270 / 270-330 / 330-400 / 400-500 MHz

Modulations

AM   FM

Sensitivity

Better than 10 µV (S/N 15 dB)

Selectivity

20 kHz @ -6 dB / 50 kHz @ -20 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 50 MHz
2nd: 5.2 MHz

Image rejection

?

Audio output

2.5 W

Connections

Antenna

-

Impedance

75Ω

Other

-

Electrical

Power requirements

Mains (100; 200; 230 V)

Current drain RX

90 VA

TX

-

Physical

Dimensions (w×h×d)

425 × 222 × 346 mm (16.73 × 8.74 × 13.62 in)

Weight

23.60 kg (52.1 lbs)

Form factor

Base Station

Manufactured

Between 1964 and 1969 in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6116

MPN

EDDYSTONE-000770U-/-MKII

Manuals, diagrams and brochures

Eddystone 770U / Mk2 Manual PDF - 2.92 MB, submitted by RigReference
