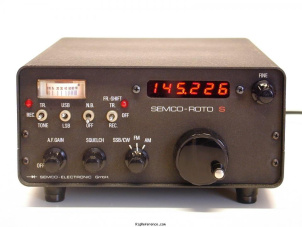

Semcoset Semco-Roto S

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

144-146 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

SSB
2.4 kHz @ -3 dB
4.5 kHz @ -60 dB

AM/FM
12 kHz @ -3 dB
32 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

≥ 60 dB

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

AM   FM   CW   SSB

RF-output

10 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

13.5 (11...16) V DC

Current drain RX

600 mA

TX

2.8 A max

Physical

Dimensions (w×h×d)

193 × 88 × 260 mm (7.60 × 3.46 × 10.24 in)

Weight

2.90 kg (6.4 lbs)

Form factor

Mobile

Manufactured

Between 197x and 197x in W.Germany

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6125

MPN

SEMCOSET-SEMCO-ROTO-S

Manuals, diagrams and brochures

Semcoset Semco Roto-S User Manual (German) PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Semcoset Semco-Roto S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Semcoset Semco-Roto S is around:

• EUR 25.00

Price History Chart

These estimates are based on the following prices:
