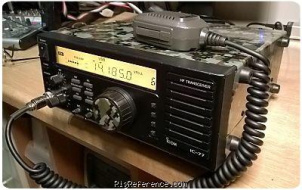

The ICOM IC-77 is a desktop shortwave transceiver. It covers 0.5-30 MHz for reception and 1.605-2 / 3.5-4 / 5-8 / 9-30 MHz for transmission. Image rejection is ≥ 70 dB. RF output is 5-100 W (AM 5-25 W). It features 1 memory bank with 50 channels. Power requirements are 13.8V DC or mains. The IC-77 weighs 3.9 kg and has a current drain of 1.3-2.1 A in receive mode and a maximum of 20 A in transmit mode. Dimensions are 95 × 240 × 239 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 50 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- SSB/CW
1.605-30 MHz; ≥ 0.5 µV for 12 dB SINAD (Preamp ON)
AM
0.5-1.605 MHz; ≥ 12.6 µV for 10 dB S/N (Preamp ON)
1.605-30 MHz; ≥ 2.0 µV for 10 dB S/N (Preamp ON) - Selectivity
- SSB/CW
2.1 kHz/-6 dB, 4.0 kHz/-60 dB
AM
6.0 kHz/-6 dB, 20 kHz/-60 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 1.605-2 / 3.5-4 / 5-8 / 9-30 MHz
- Modulations
- AM CW USB LSB
- RF-output
- 5-100 W (AM 5-25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 1.3-2.1 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 240 × 95 × 239 mm (9.45 × 3.74 × 9.41 in)
- Weight
- 3.90 kg (8.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6126
- MPN
- ICOM-IC-000077
