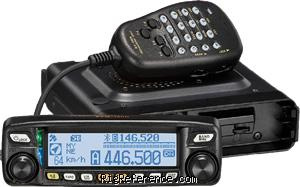

The Yaesu FTM-100DR/DE is a Mobile VHF/UHF Transceiver. It covers 108-137 / 137-174 / 174-400 / 400-480 / 480-999 MHz (Cellular blocked in the US) for receive and 144-146 / 430-440 MHz (Europe) or 144-148 / 430-450 MHz (USA) for transmit. Frequency stability is ± 2.5 p.p.m. Tuning steps are selectable from 5 to 100 kHz. RF output is selectable between 5, 20 and 50 W. Audio output is 3 W. It features a GPS-receiver, 1200/9600bps APRS® (Automatic Packet Reporting System), Bluetooth and SD-card slot. Memory capacity is 500 channels in one bank. Power requirements are 11.7-15.8 V DC. Current drain is 0.5 A on receive and 12 A max on transmit. Dimensions are 45 × 140 × 193 mm. Weight is 1.1 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 108-137 / 137-174 / 174-400 / 400-480 / 480-999 MHz (Cellular blocked in the US)
- Modulations
- AM FM N-FM W-FM Stereo
- Sensitivity
- AM (10 dB S/N)
108-137 MHz: 0.8 µV
FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
174-222 MHz: 0.3 µV
222-300 MHz: 0.25 µV
300-336 MHz: 0.8 µV
336-420 MHz: 0.25 µV
420-520 MHz: 0.2 µV
800-900 MHz: 0.4 µV
900-1000 MHz: 0.8 µV - Selectivity
- AM / FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 1st: 47.25 MHz
2nd: 450 kHz - Image rejection
- ?
- Audio output
- 3 W
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA) - Modulations
- FM N-FM
- RF-output
- 5 / 20 / 50 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11.7-15.8 V DC
- Current drain RX
- 0.5 A
- TX
- 12 A max
Physical
- Dimensions (w×h×d)
- 140 × 45 × 193 mm (5.51 × 1.77 × 7.60 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- GPS-receiver
1200/9600bps APRS® (Automatic Packet Reporting System)
Bluetooth
SD-card slot - Accessories
- -
- RigReference ID
- 6161
- MPN
- YAESU-FTM-000100DR/DE
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-100DR/DE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FTM-100DR/DE is around:
- USD 541.00 ~ USD 148.00
- CAD 315.00
These estimates are based on the following prices:
