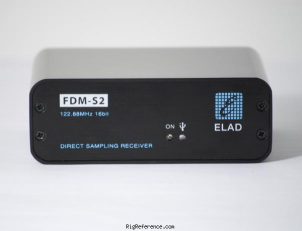

ELAD FDM-S2

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.9-52 / 74-108 / 135-160 MHz

Modulations

AM   AM-sync   FM   W-FM   CW   USB   LSB   DSB   RTTY

Sensitivity

HF 9kHz-52MHz MDS: -132dBm @ 14MHz, Clipping lev -8dBm
FM 74-108MHz sensitivity <2uV 12dB SINAD @ 98MHz, Clip lev -3dBm
VHF 135-160MHz MDS -137dBm @ 145MHz, Clipping Level -19dBm

Selectivity

≥ 100 dB, Software defined

Filters

?

Receiver system

SDR / direct conversion

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

5 V DC (USB)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

110 × 40 × 90 mm (4.33 × 1.57 × 3.54 in)

Weight

360 gr (12.7 oz)

Form factor

Headless

Manufactured

Between 2012 and 201x in Italy

Other features

Usage

Amateur / Ham radio operators

Features + options

Separate inputs Antenna for HF / 6m and FM / VHF / Bypass
WFM Stereo decoder with RDS decoder
61.44 MHz sampling frequency
32-bit
USB 2.0
USB-powered

Accessories

-

RigReference ID

6167

MPN

ELAD-FDM-S000002

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ELAD FDM-S2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ELAD FDM-S2 is around:

• EUR 229.00
