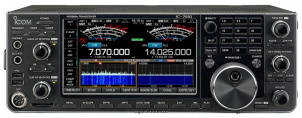

ICOM IC-7610

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

0.05 p.p.m. (0 - 50°C, after warm-up)

Tuning steps

1 Hz

Memories

101 channels in 1 bank(s)

Receiver

RX-range

0.03-60 MHz (0.500 - 29.999, 50.000-54.000 MHz guaranteed)

Modulations

AM   FM   CW   USB   LSB   RTTY   PSK31/63

Sensitivity

SSB/CW (at 10 dB S/N)
0.5–1.799 MHz: -
1.8–29.999 MHz: 0.16 µV
28.0–29.7 MHz: -
50–54 MHz: 0.13 µV

AM (at 10 dB S/N)
0.5–1.799 MHz: 6.3 μV typ.
1.8–29.999 MHz: 2.0 µV
28.0–29.7 MHz: -
50–54 MHz: 1.0 µV

FM (at 12 dB SINAD)
0.5–1.799 MHz: -
1.8–29.999 MHz: -
28.0–29.7 MHz: 0.5 µV
50–54 MHz: 0.32 µV

Selectivity

≤ 2.4 kHz/–6 dB, ≥ 3.6 kHz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 6.0 kHz/–6 dB, ≥ 15 kHz/–60 dB
≤ 12.0 kHz/–6 dB, ≥ 20 kHz/–60 dB

Filters

SSB (BW: 2.4 kHz) CW (BW: 500 Hz) RTTY (BW: 500 Hz) AM (BW: 6 kHz) FM (BW: 15 kHz)

Receiver system

Direct Sampling Superheterodyne

IF-frequencies

12 MHz

Image rejection

≥ 70 dB

Audio output

2.6W at 10% distortion with an 8Ω load

Transmitter

TX-range

10-160 m + WARC/6 m

Modulations

AM   FM   CW   USB   LSB   RTTY   PSK31/63

RF-output

1-100W (AM: 1-25 W)

Connections

Antenna

BNC + SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

3.5 A max

TX

23 A max

Physical

Dimensions (w×h×d)

340 × 117 × 277 mm (13.39 × 4.61 × 10.91 in)

Weight

9.98 kg (22.0 lbs)

Form factor

Base Station

Manufactured

Between 2017 and 201x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Large 7-inch color display, 800×600 pixels
Built-in automatic antenna tuner
Digital-Up-Conversion (DUC) for clean transmit
Dual receivers, dual spectrum scopes
DVI-D connector for an external display
SD memory card slot for saving data
I/Q signal output
Memo pad stores up to 10 operating frequencies and modes
Quick split function
Quick Dualwatch function
RF gain and squelch control with a knob
RIT and ΔTX variable up to 9.999 kHz
UTC/local clock and timer function
1 Hz pitch tuning and display

Accessories

-

RigReference ID

6187

MPN

ICOM-IC-007610

Manuals, diagrams and brochures

Icom IC-7610 Product Brochure PDF - 984.8 kB, submitted by RigReference

Icom IC-7610 Instruction Manual PDF - 6.65 MB, submitted by RigReference

Icom IC-7610 Advanced Manual PDF - 4.71 MB, submitted by RigReference

Icom IC-7610 Technical Report Vol1 Eng PDF - 1.14 MB, submitted by RigReference

Icom IC-7610 Technical Report Vol2 Eng PDF - 957.9 kB, submitted by RigReference

Icom IC-7610 Technical Report Vol3 Eng PDF - 930.6 kB, submitted by RigReference
