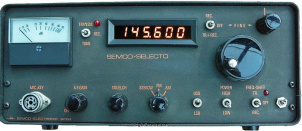

Semcoset Selecto

General characteristics

HAM bands

2m

Frequency stability

± 300 Hz / hour after warm-up

Tuning steps

Continuous

Memories

?

Receiver

RX-range

144-146 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

SSB
2.4 kHz @ -3 dB, 4.5 kHz @ -60 dB
AM/FM
15 kHz @ -3 dB, 32 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

70 dB

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

AM   FM   CW   SSB

RF-output

SSB: 25 W PEP, FM: 15...25 W, AM: 25 W PEP

Connections

Antenna

SO-239

Impedance

60Ω

Other

-

Electrical

Power requirements

12 V DC

Current drain RX

2 A

TX

9 A

Physical

Dimensions (w×h×d)

256 × 105 × 273 mm (10.08 × 4.13 × 10.75 in)

Weight

5.50 kg (12.1 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in West-Germany

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6189

MPN

SEMCOSET-SELECTO

Manuals, diagrams and brochures

Semco Selecto User manual PDF - 4.11 MB, submitted by RigReference
