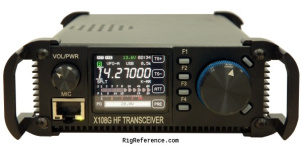

The Xiegu X108G is a QRP HF transceiver. It covers 0.5-30 MHz for both transmit and receive. Frequency stability is maintained by a 0.5 p.p.m. TCXO module. Filters include CW: 500 Hz and SSB: 2.4 kHz. RF output is adjustable from 1 to 20 W. It features AGC, noise blanker, S-meter, PO-meter, SWR-meter, and a CW keyer. The transceiver also has a USB control port. Power requirements are 12.5-14.5 V DC with a current drain of 500 mA in receive mode and 6 A in transmit mode. Dimensions are 45 × 120 × 180 mm and it weighs 1 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- 0.5 p.p.m. TCXO module
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- CW: 500 Hz SSB: 2.4 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 0.5-30 MHz
- Modulations
- AM CW USB LSB
- RF-output
- 1-20 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12.5-14.5 V DC
- Current drain RX
- 500 mA
- TX
- 6 A
Physical
- Dimensions (w×h×d)
- 120 × 45 × 180 mm (4.72 × 1.77 × 7.09 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Portable
- Manufactured
- Between 201x and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- AGC
Noise blanker
S-meter
PO-meter
SWR-meter
CW-keyer
USB control port - Accessories
- -
- RigReference ID
- 6191
- MPN
- XIEGU-X000108G
Manuals, diagrams and brochures
- Xiegu X-108G Operating Manual PDF - 915.7 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X108G. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Xiegu X108G in Good condition is around:
- USD 450
These estimates are based on the following prices:
