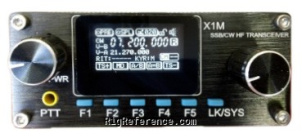

The Xiegu X1M is a QRP HF transceiver. It covers 100 kHz - 30 MHz in receive and 10-80 m in transmit. The frequency stability is ≥ 0.5 p.p.m. after warm-up (5 minutes) with 1 kHz tuning steps. RF output is 5 W. It has 1 memory bank with 100 channels. Power requirements are 12-14 V DC. Features include RIT, CW Keyer, compatibility with Ham Radio Deluxe and an LCD display. The current drain is 350 mA in receive and 1.2 A in transmit. Dimensions are 40 × 97 × 155 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ≥ 0.5 p.p.m. after warm-up (5 minutes)
- Tuning steps
- 1 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 100 kHz - 30 MHz
- Modulations
- CW USB LSB
- Sensitivity
- ≥ 0.45 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW USB LSB
- RF-output
- 5 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-14 V DC
- Current drain RX
- 350 mA
- TX
- 1.2 A
Physical
- Dimensions (w×h×d)
- 97 × 40 × 155 mm (3.82 × 1.57 × 6.10 in)
- Weight
- 650 gr (1.4 lbs)
- Form factor
- Portable
- Manufactured
- Between 2017 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RIT
CW Keyer
Compatible with Ham Radio Deluxe
LCD display - Accessories
- -
- RigReference ID
- 6192
- MPN
- XIEGU-X000001M
Manuals, diagrams and brochures
- Xiegu X1M User's Guide PDF - 571.4 kB, submitted by RigReference
- Xiegu X1M Manual v.2 PDF - 342.8 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X1M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Xiegu X1M is around:
- USD 239.00
These estimates are based on the following prices:
