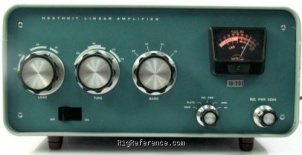

The Heathkit SB-201 is a desktop shortwave linear amplifier. It covers 15-80m and has an RF output of 600 W with 100 W drive. The amplifier operates on mains power, draws 8 A @ 240 V AC or 16 A @ 120 V AC in transmit mode. Dimensions are 168 × 378 × 340 mm and it weighs 15.85 kg.
General characteristics
- HAM bands
- 80m 40m 20m 15m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 15-80m
- Modulations
- CW SSB
- RF-output
- 600 W output with 100 W drive
Connections
- Antenna
- SO-239
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- 8 A @ 240 V AC, 16 A @ 120 V AC
Physical
- Dimensions (w×h×d)
- 378 × 168 × 340 mm (14.88 × 6.61 × 13.39 in)
- Weight
- 15.85 kg (35.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6205
- MPN
- HEATHKIT-SB-000201
