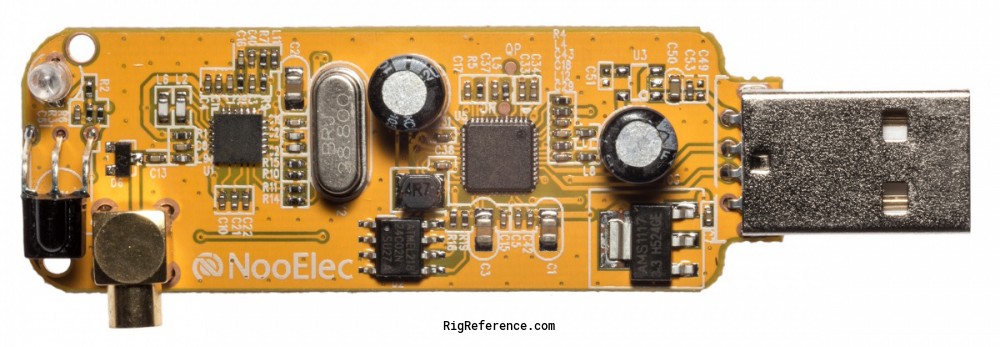

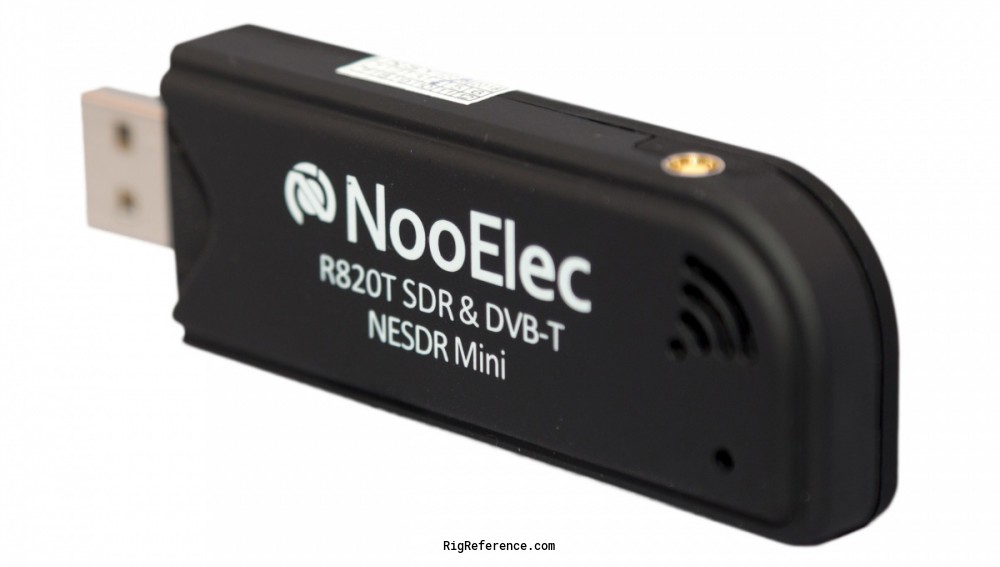

Tiny USB SDR-receiver based around the RTL2832 + R820T. The NooElec SDR is a modified DVB-T USB dongle tuned for SDR usage, including upgraded crystal, capacitors and inductors compared to generic devices. Full compatibility with a large array of software packages, such as MATLAB®, HDSDR, SDR Touch, SDR#, Planeplotter and others.

General characteristics

HAM bands
11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
25-1750 MHz
100 kHz-25 MHz optional
Modulations
All mode
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
SDR
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
MCX
Impedance
?
Other
-

Electrical

Power requirements
5 V DC, USB
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Dongle
Manufactured
Between 20xx and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6217
MPN
NOOELEC-NESDR MINI

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used NooElec NESDR Mini. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the NooElec NESDR Mini is around:

  • USD 12.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2017 USD 18.00 New / Mint RigReference
