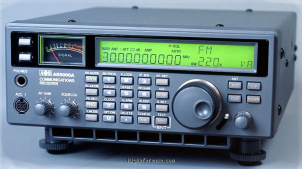

AOR AR-5000A

Desktop HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find AOR AR-5000A rigs and spare parts on eBay

The AOR AR-5000A is a desktop HF/VHF/UHF scanner / receiver. It covers 0.01-3000 MHz and features a triple conversion superheterodyne receiver system with IF frequencies of 1st: 622 MHz, 2nd: 10.7 MHz, and 3rd: 455 kHz. The AR-5000A has an audio output of 1.7 W at 10% distortion / 8 ohms. It includes AFC and NB, alpha tags, EEPROM storage, five VFO's, a clock and sleep timer, 10.7 MHz IF output, discriminator output, and RS232C. Dimensions are 100 × 217 × 260 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 500 kHz
Memories: 2000 channels in 1 bank(s)

Receiver

RX-range: 0.01-3000 MHz
Modulations: AM FM W-FM CW SSB
Sensitivity: AM (10 dB S/N, BW: 6 kHz)
10-20 MHz: 0.56 µV
90-150 MHz: 0.5 µV
400-700 MHz: 0.56 µV
1600-2600 MHz: 0.36 µV
FM (12 dB SINAD, BW: 15 kHz)
10-20 MHz: 0.56 µV
90-150 MHz: 0.28 µV
400-700 MHz: 0.32 µV
1600-2600 MHz: 0.22 µV
W-FM (12 dB SINAD, BW: 220 kHz)
90-150 MHz: 1.12 µV
400-700 MHz: 1.25 µV
1600-2600 MHz: 0.9 µV
SSB/CW (10 dB S/N, BW: 3 kHz)
10-20 MHz: 0.25 µV
90-150 MHz: 0.2 µV
400-700 MHz: 0.23 µV
1600-2600 MHz: 0.14 µV
Selectivity: 3 / 6 / 15 / 30 / 110 & 220 kHz (500 Hz optional)
Filters: ?
Receiver system: Triple conversion superheterodyne
IF-frequencies: 1st: 622 MHz
2nd: 10.7 MHz
3rd: 455 kHz
Image rejection: ?
Audio output: 1.7 W at 10% distortion / 8 ohms

Connections

Antenna: SO-239 + N-type
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: 1 A
TX: -

Physical

Dimensions (w×h×d): 217 × 100 × 260 mm (8.54 × 3.94 × 10.24 in)
Weight: 3.50 kg (7.7 lbs)
Form factor: Base Station
Manufactured: Between 199x and 2008 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: AFC and NB
Alpha tags
EEPROM storage
Five VFO's
Clock and sleep timer
10.7 MHz IF output
Discriminator output
RS232C
Accessories: 4-way external antenna switch
Tape recording cable
CTCSS unit
25-1300 MHz discone antenna
12 V cable
Voice inverter unit
30 kHz to 2 GHz ultra wideband antenna
Collins 2.5 kHz mechanical SSB filter
Collins 6 kHz mechanical AM filter
Collins 500 Hz mechanical CW filter
RS232C cable, 25 pin
RigReference ID: 6228
MPN: AOR-AR-005000A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
