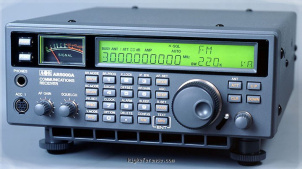

AOR AR-5000A

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 / 500 kHz

Memories

2000 channels in 1 bank(s)

Receiver

RX-range

0.01-3000 MHz

Modulations

AM   FM   W-FM   CW   SSB

Sensitivity

AM (10 dB S/N, BW: 6 kHz)
10-20 MHz: 0.56 µV
90-150 MHz: 0.5 µV
400-700 MHz: 0.56 µV
1600-2600 MHz: 0.36 µV
FM (12 dB SINAD, BW: 15 kHz)
10-20 MHz: 0.56 µV
90-150 MHz: 0.28 µV
400-700 MHz: 0.32 µV
1600-2600 MHz: 0.22 µV
W-FM (12 dB SINAD, BW: 220 kHz)
90-150 MHz: 1.12 µV
400-700 MHz: 1.25 µV
1600-2600 MHz: 0.9 µV
SSB/CW (10 dB S/N, BW: 3 kHz)
10-20 MHz: 0.25 µV
90-150 MHz: 0.2 µV
400-700 MHz: 0.23 µV
1600-2600 MHz: 0.14 µV

Selectivity

3 / 6 / 15 / 30 / 110 & 220 kHz (500 Hz optional)

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 622 MHz
2nd: 10.7 MHz
3rd: 455 kHz

Image rejection

?

Audio output

1.7 W at 10% distortion / 8 ohms

Connections

Antenna

SO-239 + N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

1 A

TX

-

Physical

Dimensions (w×h×d)

217 × 100 × 260 mm (8.54 × 3.94 × 10.24 in)

Weight

3.50 kg (7.7 lbs)

Form factor

Base Station

Manufactured

Between 199x and 2008 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

AFC and NB
Alpha tags
EEPROM storage
Five VFO's
Clock and sleep timer
10.7 MHz IF output
Discriminator output
RS232C

Accessories

4-way external antenna switch
Tape recording cable
CTCSS unit
25-1300 MHz discone antenna
12 V cable
Voice inverter unit
30 kHz to 2 GHz ultra wideband antenna
Collins 2.5 kHz mechanical SSB filter
Collins 6 kHz mechanical AM filter
Collins 500 Hz mechanical CW filter
RS232C cable, 25 pin

RigReference ID

6228

MPN

AOR-AR-005000A
