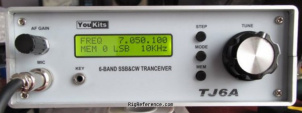

Youkits TJ6A

6 band SSB/CW transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Youkits TJ6A is a 6 band SSB/CW transceiver. Frequency range RX: 2.5-4.1 / 5-8 / 10-15.1 / 18-22 MHz. Frequency range TX: 1.5-4 / 7-7.5 / 10.1-10.15 / 14-14.5 / 18.068-18.168 / 21-21.5 MHz. Frequency stability: 0.6 µV (10 dB S/N). Tuning steps (kHz): 1 / 10 / 100 Hz / 1 / 10 / 100 kHz. Receiver system: Single conversion superheterodyne. IF frequencies: 9 MHz. RF output: 5-8 W. Memory banks: 1. Memory channels: 8. Power requirements: 13.8 V DC. Current drain RX: 180 mA.

General characteristics

HAM bands: 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m
Frequency stability: 0.6 µV (10 dB S/N)
Tuning steps: 1 / 10 / 100 Hz / 1 / 10 / 100 kHz
Memories: 8 channels in 1 bank(s)

Receiver

RX-range: 2.5-4.1 / 5-8 / 10-15.1 / 18-22 MHz
Modulations: CW USB LSB
Sensitivity: 0.3 µV
Selectivity: ?
Filters: ?
Receiver system: Single conversion superheterodyne
IF-frequencies: 9 MHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 1.5-4 / 7-7.5 / 10.1-10.15 / 14-14.5 / 18.068-18.168 / 21-21.5 MHz
Modulations: CW USB LSB
RF-output: 5-8 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 180 mA
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Kit
Manufactured: Between 20xx and 20xx in Canada

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6236
MPN: YOUKITS-TJ000006A
