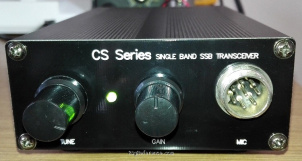

CRKITS CS-Series

General characteristics

HAM bands

80m  40m  20m  17m (WARC)  15m

Frequency stability

?

Tuning steps

?

Memories

None

Receiver

RX-range

One of the following bands: 80 / 40 / 20 / 17 / 15 m

Modulations

SSB

Sensitivity

≥ 0.5 μV at 10 dB SNR

Selectivity

?

Filters

6-pole crystal filter

Receiver system

Single conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

3.5mm connector, mono output

Transmitter

TX-range

One of the following bands: 80 / 40 / 20 / 17 / 15 m

Modulations

SSB

RF-output

2 W PEP

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12~13.8 V

Current drain RX

30 mA

TX

2 A max

Physical

Dimensions (w×h×d)

153 × 97 × 40 mm (6.02 × 3.82 × 1.57 in) not including protruding features

Weight

500 gr (1.1 lbs)

Form factor

Handheld

Manufactured

Between 201x and 201x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6244

MPN

CRKITS-CS-SERIES

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used CRKITS CS-Series. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the CRKITS CS-Series in Good condition is around:

• USD 104
