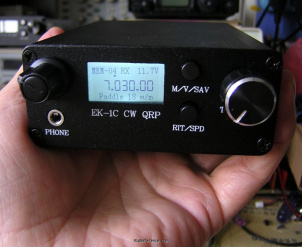

The Youkits EK-1C is a 3 Band transceiver. Frequency range RX: 5.9-16 MHz, TX: 7.0-7.3 / 10.1-10.15 / 14.0-14.35 MHz. RF output is 5 W @ 13.8 V. Features include Sidetone: 700Hz, Keyer: 5-40 wpm adjustable, Auto scan function and LCD display with backlight. Memory banks: 1, memory channels: 16. Power requirements are 9-16 V DC. Current drain RX: 70 mA, TX: 900 mA. Dimensions are 38 × 88 × 124 mm.
General characteristics
- HAM bands
- 40m 30m (WARC) 20m 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 5.9-16 MHz
- Modulations
- CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- IF-DDS: 60 MHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 7.0-7.3 / 10.1-10.15 / 14.0-14.35 MHz
- Modulations
- CW
- RF-output
- 5 W @ 13.8 V
Connections
- Antenna
- BNC
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 9-16 V DC
- Current drain RX
- 70 mA
- TX
- 900 mA
Physical
- Dimensions (w×h×d)
- 88 × 38 × 124 mm (3.46 × 1.50 × 4.88 in)
- Weight
- 280 gr (9.9 oz)
- Form factor
- Mobile
- Manufactured
- Between 201x and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Sidetone: 700Hz
Keyer: 5-40 wpm adjustable
Auto scan function
LCD display with backlight - Accessories
- -
- RigReference ID
- 6246
- MPN
- YOUKITS-EK-000001C
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits EK-1C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Youkits EK-1C is around:
- USD 114.00
These estimates are based on the following prices:
