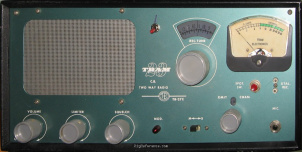

The Tram TR-27E is a base station transceiver. It operates on the 11m (CB) band with a frequency range of 26.965-27.? MHz for both receive and transmit. The RF output power is 3.5 W. It features channelized tuning steps, a Collins mechanical filter in the front end, and an image rejection ratio of 60 dB. It has 1 memory bank with 23 channels.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.? MHz
- Modulations
- AM
- Sensitivity
- 0.1 µV for 300 mW of audio
- Selectivity
- 5 kHz @ -6 dB
- Filters
- Collins mechanical filter in front end
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.? MHz
- Modulations
- AM
- RF-output
- 3.5 W
Connections
- Antenna
- SO-239
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1963 and 196x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6265
- MPN
- TRAM-TR-000027E
Manuals, diagrams and brochures
-
No documents available for this particular model.
