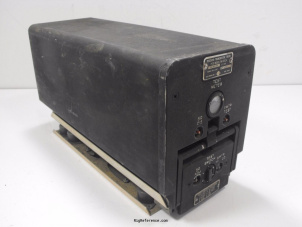

Military FM-622A

Mobile Military Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Military FM-622A rigs and spare parts on eBay

Find the Military FM-622A on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

Airborne FM/VHF version of the Army ground radio set AN/VRC-12. The set is capable of operating as a relay for both voice and homing information signals.

NSN No: 5821-933-8987

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 50 kHz
Memories: 920 channels in 1 bank(s)

Receiver

RX-range: 30-75.95 MHz
Modulations: FM
Sensitivity: 0.4 µV for 10 dB S+N/N
Selectivity: 32 kHz @ -6 dB
85 kHz @ -60 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 30-75.95 MHz
Modulations: FM
RF-output: 10 W

Connections

Antenna: Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: 27.5 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Mobile
Manufactured: Between 197x and 197x in USA

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 6283
MPN: MILITARY-FM-000622A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Military FM-622A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
