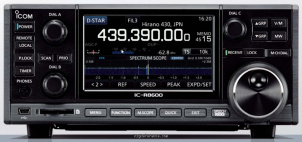

ICOM IC-R8600

General characteristics

HAM bands

?

Frequency stability

± 0.5 p.p.m.

Tuning steps

1 Hz

Memories

2000 channels in 100 bank(s)

Receiver

RX-range

10 kHz - 3.0 GHz (cellular blocked on consumer model)

Modulations

AM   AM-sync   FM   W-FM   CW   USB   LSB   FSK   D-STAR   P25   DV

Sensitivity

SSB/CW/FSK (at 10 dB S/N)
0.1– 1.799 MHz: –6 dBμ
1.8– 29.999 MHz: –14 dBμ
30– 1099.999 MHz: –10 dBμ
1100– 1999.999 MHz: –10 dBμ
2000– 3000 MHz: –8 dBμ

AM (at 10 dB S/N)
0.1– 1.799 MHz: 16 dBμ
1.8– 29.999 MHz: 8 dBμ
30– 1099.999 MHz: 15 dBμ
1100– 1999.999 MHz: 15 dBμ
2000– 3000 MHz: 15 dBμ

FM (at 10dB S/N)
0.1– 1.799 MHz: -
1.8– 29.999 MHz: –6 dBμ*2
30– 1099.999 MHz: –6 dBμ
1100– 1999.999 MHz: –6 dBμ
2000– 3000 MHz: –4 dBμ

W-FM (at 12 dB SINAD)
0.1– 1.799 MHz: -
1.8– 29.999 MHz: -
30– 1099.999 MHz: 3 dBμ
1100– 1999.999 MHz: 3 dBμ
2000– 3000 MHz: 5 dBμ

D-STAR, NXDN, dPMR (1% BER)
0.1– 1.799 MHz: -
1.8– 29.999 MHz: –2 dBμ*2
30– 1099.999 MHz: –2 dBμ
1100– 1999.999 MHz: –2 dBμ
2000– 3000 MHz: 0 dBμ

P25 (5% BER)
0.1– 1.799 MHz: -
1.8– 29.999 MHz: –5 dBμ*2
30– 1099.999 MHz: –5 dBμ
1100– 1999.999 MHz: –5 dBμ
2000– 3000 MHz: –3 dBμ

Selectivity

AM (BW=6 kHz)
>6 kHz (-3 dB), <15 kHz (-60 dB)
FM (BW=15 kHz)
>12 kHz (-6 dB), <20 kHz (-60 dB)
W-FM (BW=350 Hz)
>180 kHz (-6 dB)
SSB/FSK (BW=2.4 kHz)
>2.4 kHz (-6 dB), <3.6 kHz (-60 dB)

Filters

240 / 50 / 15 / 6 / 3 kHz

Receiver system

Direct / Double / Triple conversion superheterodyne

IF-frequencies

0.010–29.999 MHz: Direct sampling
30.000–499.999 MHz: Double superheterodyne (IF: 778.7, 46.35 MHz)
500.000–1099.999 MHz: Double superheterodyne (IF: 278.7, 46.35 MHz)
1100.000–1499.999 MHz: Triple superheterodyne (IF: 900–500.000001, 278.7, 46.35 MHz)

Image rejection

0.1-30 MHz: >70 dB30-3335 MHz: >50 dB

Audio output

2 W

Connections

Antenna

SO-239 + N-type + RCA (Tulip)

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±15%

Current drain RX

2 A max

TX

-

Physical

Dimensions (w×h×d)

220 × 90 × 230 mm (8.66 × 3.54 × 9.06 in)

Weight

4.30 kg (9.5 lbs)

Form factor

Base Station

Manufactured

Between 2017 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

4.3-inch touch display
Real-time Spectrum Scope
SD Card Slot
Remote Control through IP-network or USB

Accessories

SP-23 external speaker
SP-39AD power supply

RigReference ID

6288

MPN

ICOM-IC-R008600
