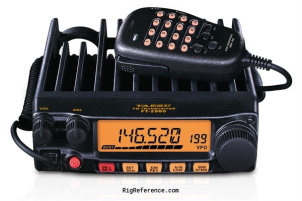

Yaesu FT-2980E

General characteristics

HAM bands

2m

Frequency stability

Better than ±10 ppm

Tuning steps

?

Memories

200 channels in 1 bank(s)

Receiver

RX-range

136-174 MHz

Modulations

FM   AFSK

Sensitivity

Better than 0.4 µV (12 dB SINAD)

Selectivity

-6 / -60dB:
12 kHz / 28 kHz (Wide)
9 kHz / 22 kHz (Narrow)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 21.7 MHz
2nd: 450 kHz

Image rejection

Better than 70dB

Audio output

3W into 4 ohms @ 10% THD

Transmitter

TX-range

144-146 MHz

Modulations

FM   AFSK

RF-output

80 / 30 / 10 / 5 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

0.7A max

TX

15A max

Physical

Dimensions (w×h×d)

160 × 50 × 185 mm (6.30 × 1.97 × 7.28 in) w/o knobs

Weight

1.90 kg (4.2 lbs)

Form factor

Mobile

Manufactured

Between 2017 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

- Massive Heatsink guarantees 80 Watts of RF Power with No Cooling Fan Needed
(Four selectable power output levels are provided: 80/30/10/5 Watts)
- Loud 3 Watts of Audio Output for noisy environments
- Large 6 Digit Backlit LCD ensure excellent visibility
- Excellent Receiver Performance
- Alpha-Numeric Channel Display
- 200 Memory Channels for serious users
- CTCSS and DCS Encode/Decode Built in
- Versatile Scanning Capability
- WX Channels with "Severe Weather" Alert
- Smart Search Operation

Accessories

-

RigReference ID

6318

MPN

YAESU-FT-002980E

Manuals, diagrams and brochures

Yeasu FT-2980R Operating Manual PDF - 1.58 MB, submitted by RigReference



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-2980E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-2980E in Good condition is around:

• EUR 113 ~ EUR 128
• USD 113

Price History Chart

These estimates are based on the following prices:
