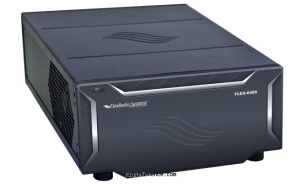

The FlexRadio FLEX-6400 model is designed for the Ham who wants to operate the radio exclusively as a server from PC or laptop. This has no controls on the rigs itself. This model has two independent receivers. Identical to the FlexRadio FLEX-6400M, which ads manual controls on the front.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- 0.5 p.p.m. TCXO
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 30 kHz – 54 MHz
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR, Direct Digital Sampling ADC sampling rate: 122.88 Msps, ADC resolution: 16 bit.
- IF-frequencies
- ?
- Image rejection
- ≥ 100 dB
- Audio output
- 1W diagnostic speaker
Transmitter
- TX-range
- 160-6 m
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- RF-output
- 1-100W SSB, CW, FM, RTTY, DIGITAL; 1-25W AM
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ± 15%
- Current drain RX
- 1.7 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 350 × 171 × 337 mm (13.78 × 6.73 × 13.27 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2017 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- SDR (Software Defined Radio)
Ethernet
2 × USB 2.0 - Accessories
- -
- RigReference ID
- 6319
- MPN
- FLEXRADIO-FLEX-006400
Manuals, diagrams and brochures
-
No documents available for this particular model.
